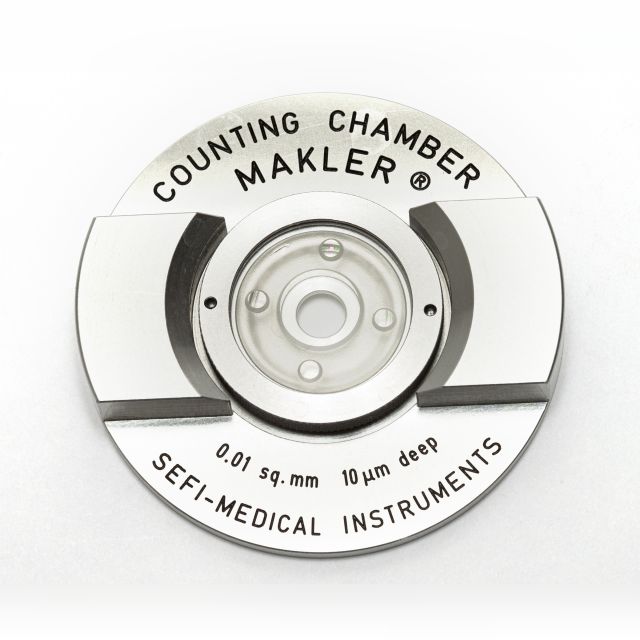

Makler Chamber SEFI

Makler Chamber

Features

  • The Makler sperm counting chamber can be used to perform a sperm count from an undiluted semen specimen during IVF and andrology related procedures.
  • The depth of 10 microns eliminates blurring and allows sperm to move freely. The applied sample is observed in one focal plane.
  • The grid is on the cover glass. This eliminates the need to insert a grid into the microscope eye piece and remove it when not required.
  • Reusable. Easily cleaned with a non-bleach disinfectant solution.
  • Observation of color fringes at the four contact points, provides a self-controlled test for accuracy. The cover glass can never be raised by the applied sample.
  • Repeated use with complete accuracy without calibration.
  • Manufactured by state-of-the-art precision engineering. Checked individually by laser beam for precision and accuracy.
  • 20X objective or 20X eyepieces required
